Resistance to clogging
Descriptions
Specifications
| Pressure Range (MPa) | 0.1 – 1 |
| Water Flow Rate (L/min) at 0.3 MPa | 2 – 18 |
| Spray Angle at 0.3 MPa | 15 ํ – 130 ํ |
| Connecting threads | 1/2, 3/8 male |

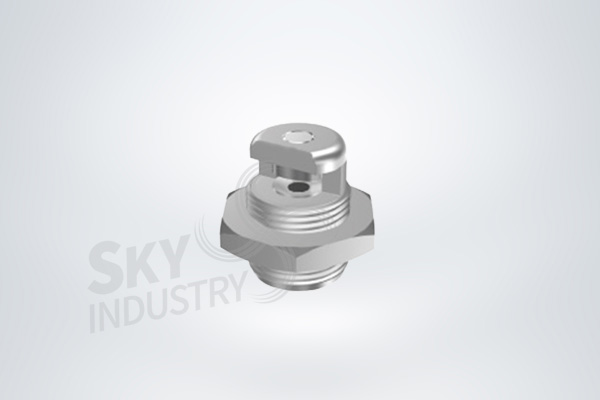

SCF Self cleaning nozzles
Features

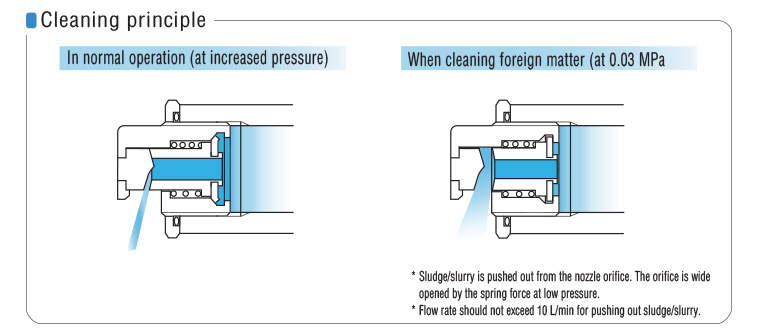

- Even if the nozzle orifice is blocked with foreign matter, the orifice can open wider by the reduction in spray pressure to 0.03 MPa, hence blockages can be removed without detaching the nozzle. It is effective when you are worried about clogging by water quality.
Applications
- Cleaning wire and felts.
- Cleaning wire roll and press roll.
- Cleaning by the equipment which is difficult to de-installation.
