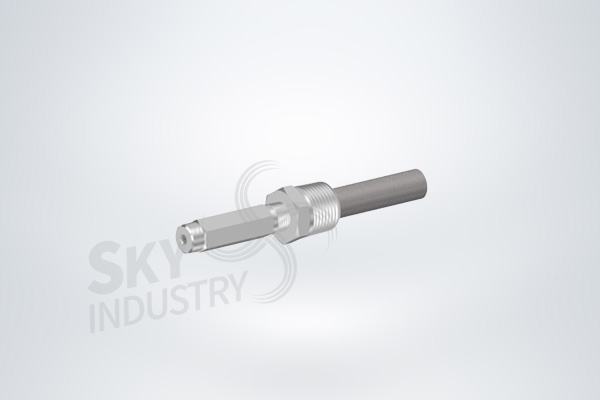

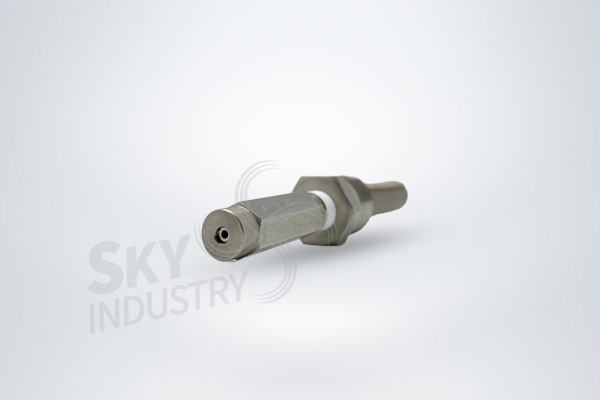

KCJ type D nozzle
KCJ D spray pattern
Needle jet nozzles KCJ...D
KCJ type D nozzle
KCJ D spray pattern

KCJ…D Needle Jet Nozzles

Features

  • High impact force without scatter of spray.
  • Nozzle orifice of highly wear-resistant material.
  • Any different diameters based upon paper weight and speed are available.

Applications

  • Trim cutter (edge cutting), Tail cutter.

Descriptions

Model Needle jet nozzles

3/8 KCJ…D X 2 Double needle type
3/8KCJ D3
3/8 KCJ…D X 3 Triple needle type
1/8KCJK D nozzle
1/8 KCJK…D Paper powder prevention type
Nozzle KCJK D2
3/8 KCJK…D X 2

Specifications

Pressure Range (MPa)0.3 – 5
Water Flow Rate (L/min) at 0.3 MPa0.3 – 1.2
Filter (Mesh)50, 80
Connecting threads1/8, 3/8
Technical Data
